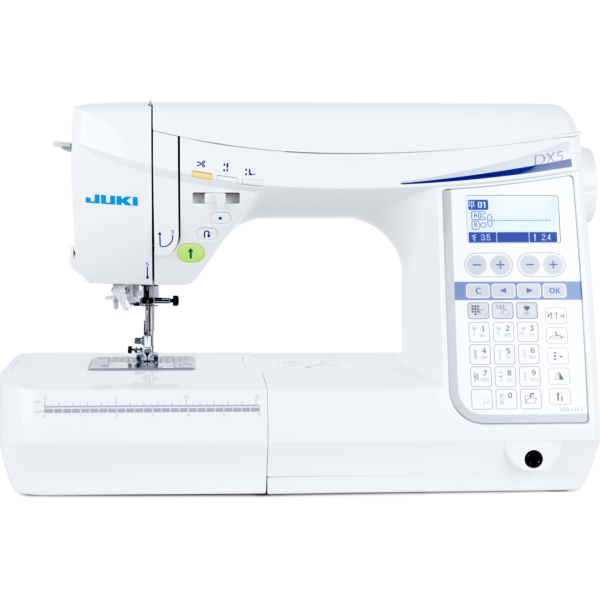

Juki HZL-DX5 computerized sewing machine

The Juki HZL-DX5 combines modern technology with a very pleasant sewing feel. Its precise box feed ensures that fabrics are fed cleanly and evenly, while the 7-point steel feed dog ensures reliable fabric feed even with several layers or thicker materials. Particularly exciting is the multifunctional stitch plate , which can be converted from a normal stitch plate to a straight stitch plate with a lever - ideal for fine fabrics and precise sewing.

With 185 stitch patterns, 3 alphabets and 16 buttonholes , the DX5 offers plenty of scope for creative design. Convenient functions such as automatic needle threader, automatic winding with separate motor, automatic thread cutter, adjustable starting speed, knee lever and floating mode make working particularly pleasant. There are also practical details such as the programmable foot pedal functions, the integrated instructions and the option to save pattern combinations. This makes the DX5 a strong choice for anyone who wants more than just standard sewing.

Product features

• 185 stitch patterns

• 3 alphabets

• 16 buttonholes

• multifunctional stitch plate

• box feed

• floating mode

• automatic needle threader

• automatic or manual thread tension

• 7-point steel feed dog

• up to 1050 stitches/minute

• max. 7 mm stitch width

• max. 5 mm stitch length

• adjustable starting speed

• 7 programmable foot pedal functions

• automatic thread cutter

• retractable feed dog

• knee lever included

• twin needle function

• sturdy free arm

• robust case cover

• dimensions approx. 440 x 210 x 290 mm

• weight approx. 10.3 kg

functions in detail

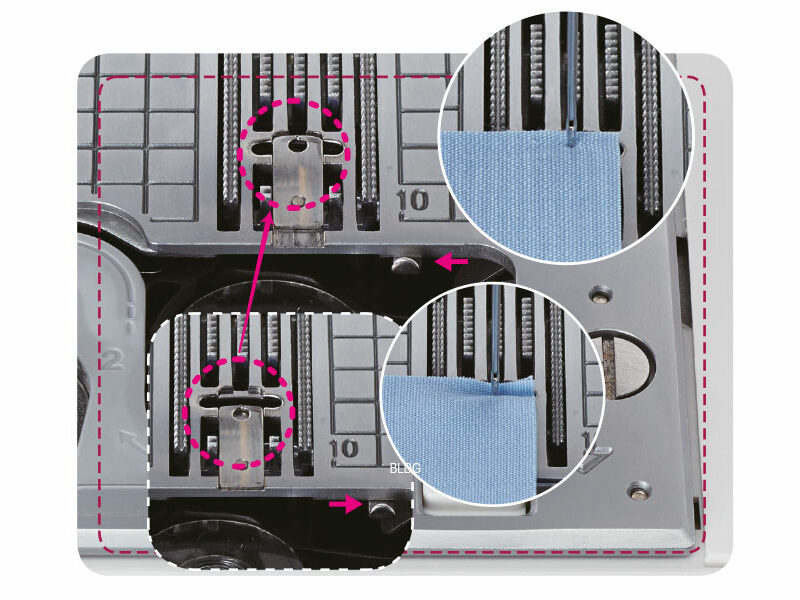

multifunctional stitch plate

A special highlight of the DX5 is the multifunctional stitch plate . With a small lever, it can be converted to a straight stitch plate . This is a great advantage, especially for fine fabrics , for very precise sewing and for free-motion quilting . The fabric is guided particularly cleanly and the start of sewing is more stable. According to Juki, this function can only be used in straight stitch mode.

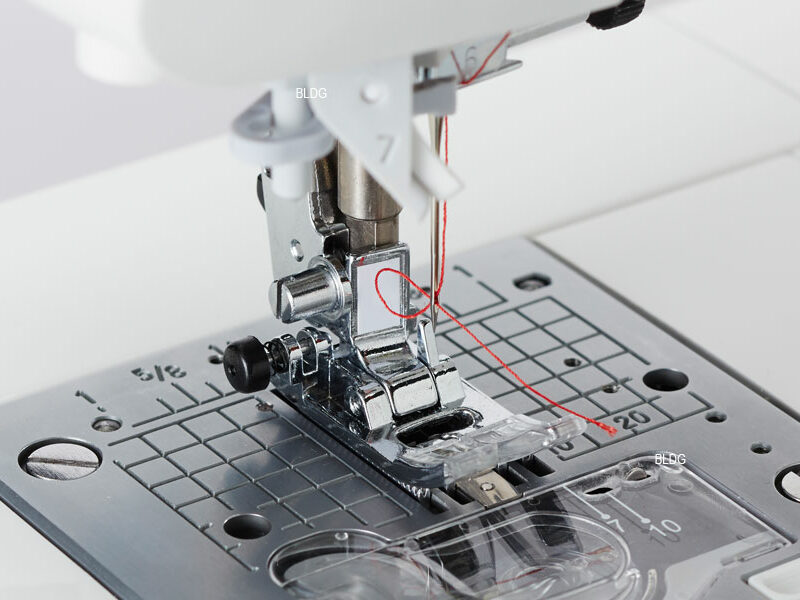

Automatic needle threader

The automatic needle threader makes threading much easier. Simply press the lever and the thread is threaded into the needle. This saves time, is easy on the eyes and makes working with different thread colors much more pleasant.

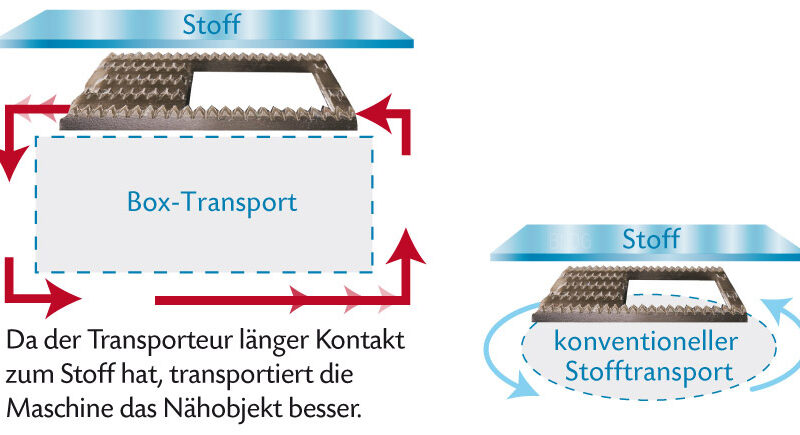

box feed

The box feed is one of the great strengths of the DX5. In contrast to a classic oval feed, Juki moves the feed dog rectangularly so that it remains in contact with the fabric for longer. As a result, fabrics are fed more evenly , slip less and the sewing is cleaner. This system really comes into its own with light to heavy fabrics .

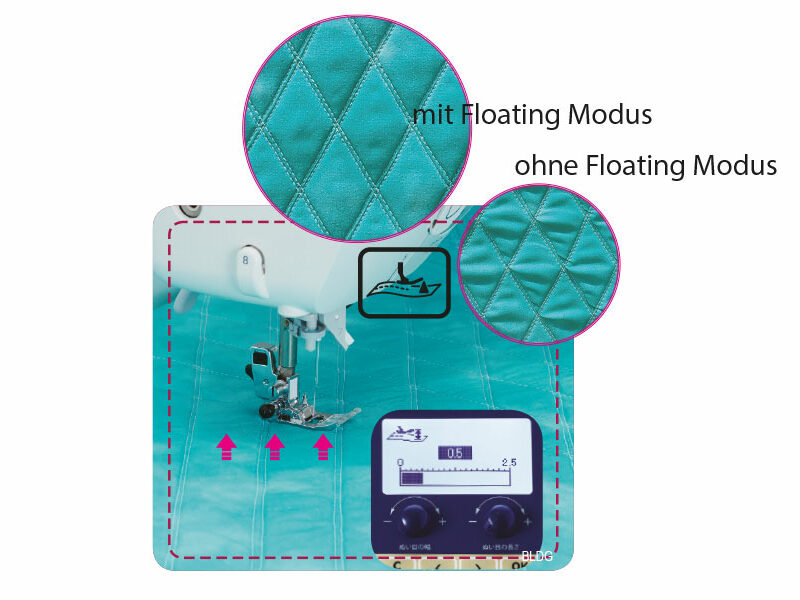

floating mode

In floating mode the presser foot hovers slightly above the material. This helps to prevent layers of fabric from shifting or being pulled along unnecessarily. This ensures a very clean result, especially when topstitching , with more delicate materials and with several layers.

Direct stitch pattern selection and LCD display

The DX5 offers direct stitch selection for frequently used sewing programs. The LCD display shows you the stitch, settings and even the recommended presser foot. Stitch width and stitch length can also be conveniently adjusted. This makes operation pleasantly clear.

Easy sewing start

There is a practical button on the presser foot that can be used to bring the foot parallel to the stitch plate. This makes it easier to start sewing with several layers of fabric, transitions or thicker materials and ensures a better start to the seam.

free arm

The free arm makes it easier to sewing rounded parts such as sleeves, trouser legs or smaller sewing jobs. In combination with the attachable table, sewing larger projects also becomes more comfortable.

7 programmable foot pedal functions

A special feature of the DX5 is that the heel area of the foot control can be assigned to 7 different functions . These include, for example, reverse sewing, sewing in, point sewing, needle up/down, foot lift or thread cutter . This gives you much more control directly from the pedal when sewing.

Strong fabric feed even for denim

Thanks to the special steel feed dog and improved presser foot design, the DX5 is also very convincing with heavier fabrics . Juki specifically mentions heavy materials such as denim , which are much easier to work with.

Sensor buttonhole

The DX5 sews 16 different buttonholes using a special sensor method. This results in very even buttonholes, even on seam edges. The machine measures the buttonhole and sews both sides neatly and accurately.

Adjustable buttonhole cutting width

The The cutting width of the buttonhole can be adjusted in three steps without changing the seam width. This is practical when different button sizes or different material thicknesses are to be processed. This ensures that the buttonhole remains stable and fits properly.

LED light

The integrated LED light ensures good illumination of the sewing area. A particularly pleasant feature is that it does not overheat, even during prolonged use.

automatic winding with separate motor

The DX5 has an automatic winding system with separate bobbin winder motor . This means that a bobbin can be prepared particularly quickly and easily. According to Juki, this is even possible while sewing.

Important function buttons directly on the machine

Speed, needle up/down, reverse sewing and automatic thread cutter are arranged directly and clearly on the machine. This increases convenience and shortens distances in everyday sewing.

Adjustable foot pressure

The Sewing foot pressure can be adjusted to suit the material. This is particularly helpful with stretchy fabrics , as warping or stretching of the material can be reduced.

7-point steel feed dog

The 7-point steel feed dog ensures a strong fabric feed of light to heavy fabrics . According to Juki, two additional feed dogs in front of the needle also make it easier to start sewing.

Adjustable start speed

The DX5 offers adjustable starting speed with the variants slow, normal and fast. This is particularly convenient for precise sewing starts, small parts or tricky areas.

Integrated instructions and control

Numerous settings can be made at the touch of a button, such as needle up/down, automatic thread trimming, pattern sequences, foot pedal assignment, display contrast, beep volume and even the language . A integrated instructions can also be called up.

Combine and save patterns

Letters and individual patterns can be combined and saved. According to Juki, 70 memory locations in 10 folders are available for this purpose . This is particularly practical for recurring decors, lettering or favorite patterns.

Perfect alignment of needle and stitch

The DX5 not only allows different needle positions, but also allows the position of an entire pattern to be adjusted without changing the width . This is particularly helpful for appliqué and decorative stitches.

Easy insertion of the bobbin

The bobbin is conveniently inserted from above. Follow the marking, insert the thread and you're ready to go. This makes the machine very suitable for everyday use.

twin needle function

The Twin needle option supports decorative double stitching and helps to keep stitch patterns within the safe area. This reduces the risk of needle breakage and facilitates beautiful hems and embellishments.

Automatic or manual thread tension

The DX5 offers both automatic thread tension and the option to adjust the tension manually. This allows you to work comfortably with the standard settings or make your own effects and adjustments.

Retractable feed dog

The feed dog can be retracted to sewing free-motion quilting stitches or free-motion embroidery. This makes the DX5 even more versatile for creative techniques. The

knee lever

The knee lever supplied is particularly practical because you can raise and lower the presser foot without taking your hands off the fabric. This is a great convenience, especially for quilting or precision work.

Sturdy case cover

The DX5 comes with a sturdy case cover that protects the machine from dust and damage and also provides space for accessories.

Technical data

• Machine type: Computerized sewing machine

• Stitch patterns: 185

• Alphabets: 3

• Buttonholes: 16

• Stitch length: max. 5 mm

• Stitch width: max. 7 mm

• Sewing speed: max. 1050 stitches/min.

• Presser foot lift: 2 levels, max. 12 mm

• Needle system: 130/705H

• Dimensions: approx. 440 x 210 x 290 mm

• Weight: approx. 10.3 kg

• Passage: approx. 203 x 115 x 210 mm
